Produktdetails:
|
| Produktname: | Optische Faser-Schneidmaschine | Anwendung: | Telekommunikationsnetzwerk |
|---|---|---|---|
| Anwendbare Faser: | Silikonglasfaser | Zerspaltete Faserlänge: | 5~16mm (0,25); 10~16mm (0,9) |

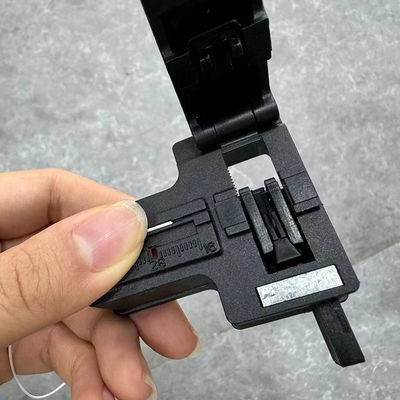

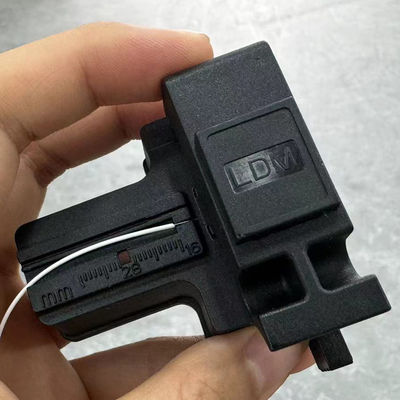

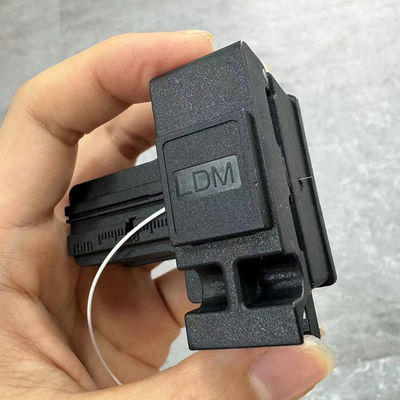

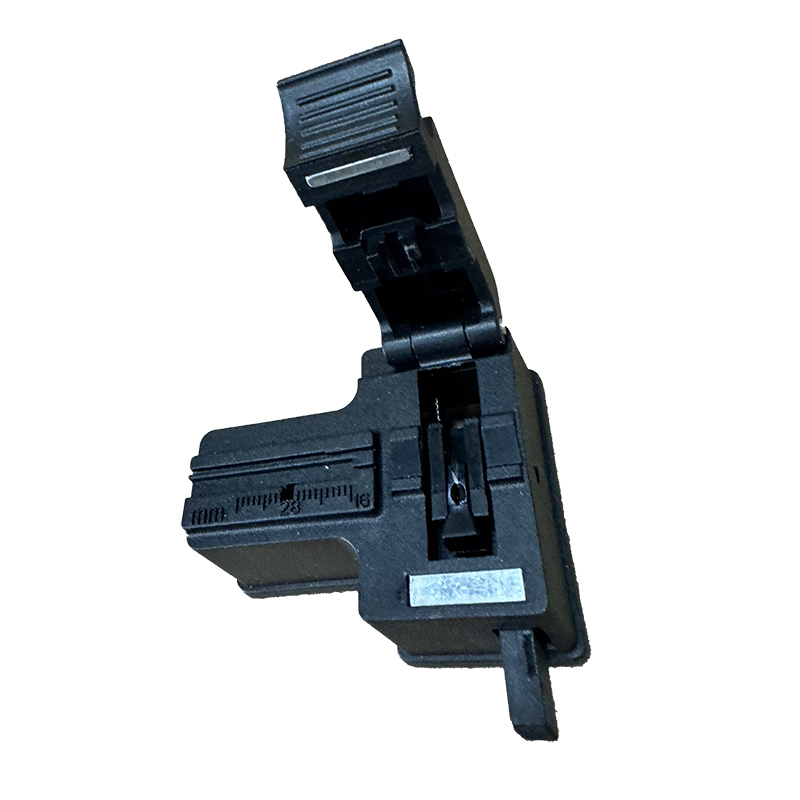

FONGKO FTTH Cold Joint Fiber Optic Equipment Fiber Optic Cleaver
fiber cleaver is a specialized tool used in fiber optic cable installation and maintenance.Fiber cleavers come in different designs and styles, but most of them consist of a cutting blade or wheel, a fiber holder or v-groove, and an adjustment mechanism for controlling the position of the fiber.The fiber cleaver achieves this by scribing the fiber, creating a stress point, and then applying a controlled force to break the fiber at the scribe line. This results in a smooth, perpendicular cut with minimal damage to the fiber.
|
Applicable fiber
|
Bare fiber
|
|
Applicable bare fiber diameter
|
125μm
|
|
Dimension
|
84*77*42mm
|
|
Weight
|
200g
|
|
Cutting angle
|
≤1°
|
![]()
